I-BAY IP65 LED HIGH BAY LIGHT

I-BAY IP65 - LED HIGH BAY LIGHT

1/3

Available Color Temperatures : 3000K , 4000K , 6500K .

Dimmable (1-10V) or DALI LED Drivers .

Model	Wattage	Color Temoerature	Beam Angle	LED’s Qty.	Ø	H
(3,900-11,700) Lm	(30-90)W	3000K/4000K/6500K	120° , 90° , 60°	140	290 mm	130 mm
(13,000-19,500) Lm	(100-150)W	3000K/4000K/6500K	120° , 90° , 60°	210	340 mm	140 mm
(23,400-31,200) Lm	(180-240)W	3000K/4000K/6500K	120° , 90° , 60°	280	386 mm	155 mm

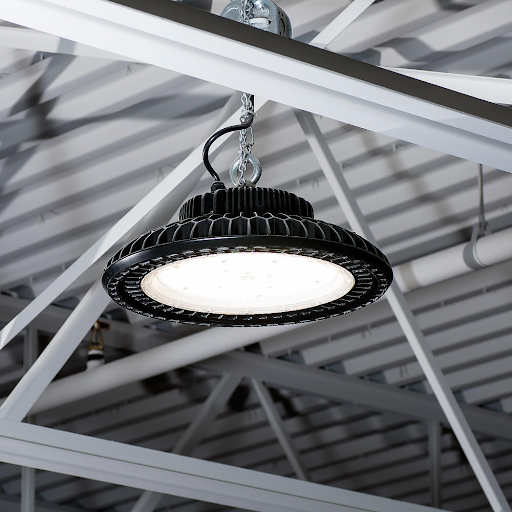

I-BAY IP65 is LED UFO High Bay Lights are energy-efficient lights that produce a large lumen output on small power input. These lights distribute lights uniformly over a large area like a warehouse. These lights are better than the traditional lights in terms of energy efficiency and cost-effectiveness.

IP65

IK08

5 Years warranty

OPTIONS :

Dimmable ( 1 - 10V ) or DALI LED Drivers .

The Isometric file

Housing : High quality die cast aluminum, polyester powder painted finish, corrosion resistant Air convection cooling, free of dirt accumulation, greatly extend the luminaire life time
Degree of protection : IP65
Impact Rating : IK08
Operating temperature : -20 : 50°C
Rated lifetime : 50,000 Hrs ( L70 @ 55C° )

Product diminutions

I-BAY IP65 - LED HIGH BAY LIGHT
